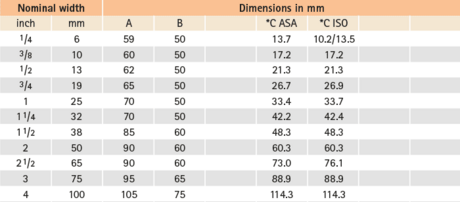

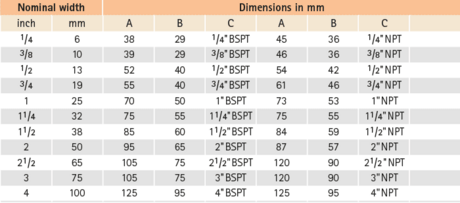

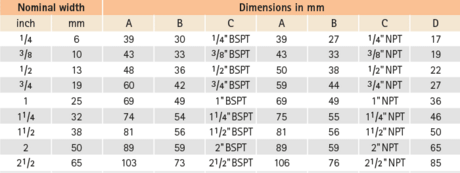

Dimensions standard version Fig. 101 - 103

WIG welded hose connections for stainless steel-metal hoses. Standard versions of the connections: steel.

Likewise, these connections can be supplied in rustproof steel and also in other rustproof, austenitic steels.

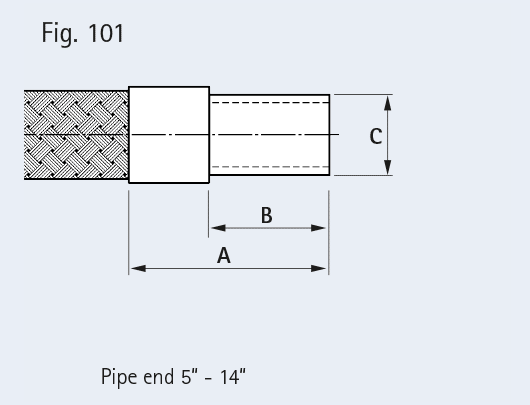

Dimensions standard version Abb. 101

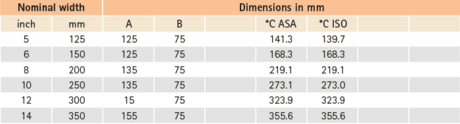

Dimensions standard version Abb. 101

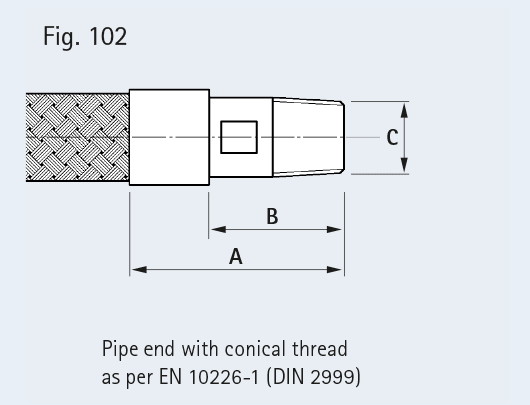

Pipe end with conical thread as per EN 10226-1 (DIN 2999)

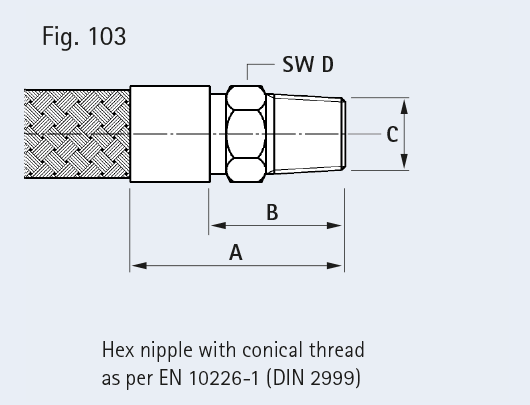

Hex nipple with conical thread  as per EN 10226-1 (DIN 2999)
